The Safe Operation of High Voltage Power Systems (Full High Voltage Authorisation) to comply with HTM 06 – 03 (NHSHVAP)
NHSHVAP

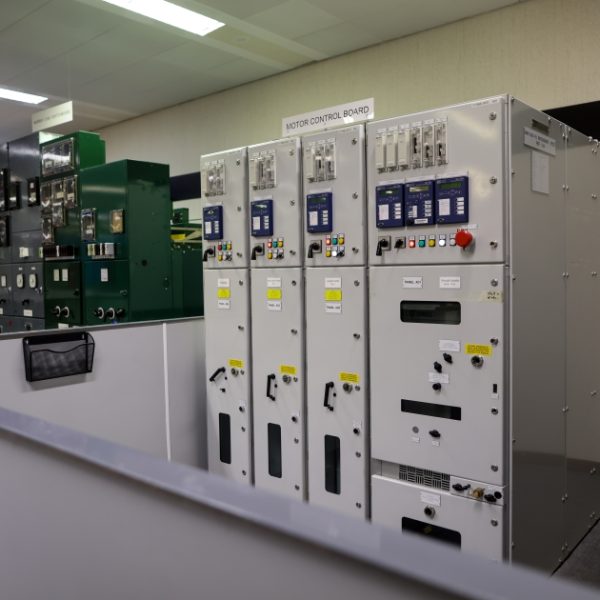

This course provides an understanding of Hospital high and low voltage power systems including statutory regulations, safe operation, protection and fault diagnosis on a wide range of power equipment. It also enables candidates to perform HV switching operations on industrial HV networks up to and including 15kV, and prepares them for HV authorisation in accordance with HTM 06 – 03.
Course content
Week 1 Competency content
- Electrical hazards and precautions
- Electricity at Work Regulations
- Operational and safety features of switchgear
- Substation and safety requirements (land-based)
- HTM 06-03 High voltage safety rules
- Secondary hazards and emergency conditions
- Operational procedures in accordance with HTM 06-03
- Key safe and isolok systems
- An outline of the use of electrical protection on industrial power systems
- Practical exercises
- Theoretical and practical assessment
Week 2 Awareness content
- Auxiliary equipment
- Primary conductors and switchgear enclosures
- Switchgear maintenance
- Battery supply units
- Introduction to Partial Discharge
- Introduction to Thermography
- Fault diagnosis
- HV Phasing
- Theoretical assessment
- Demonstration of Cable spiking
Week 2 Awareness content
- Requirements for over current and earth fault protection
- Fuse and MCCB protection
- Current transformer requirements and safety
- Voltage transformers
- Protection relays types
- Fault energy and fault current
- Secondary injection testing
- Primary injection testing
- Feeder protection
- Transformer protection requirements
- Motor protection requirements
- Generator protection requirements
- Tripping battery systems
- Trip circuit supervision requirements
- Fault exercises
- Insulation resistance
- Safety requirements for testing
- Polarisation index
- Flash testing
- DC pressure tests
- AC pressure tests
- Demonstration of the testing of power cables using VLF test equipment
- Methods of cable identification
- Ground clearance by cable avoidance tool (CAT)
- Circuit breakers – oil, gas, air and vacuum
Who should attend?
Personnel who are to be responsible as authorised person for switching and issuing of electrical safety documents. Candidates with little HV experience may find it beneficial to attend our S9 course as a precursor to this course.
Certifications
Candidates who successfully complete the course and both theoretical and practical assessments will receive The Faraday Centre competence certificate. Candidates who fail will receive The Faraday Centre attendance certificate.
Personnel who are to be responsible as authorised person for switching and issuing of electrical safety documents. Candidates with little HV experience may find it beneficial to attend our S9 course as a precursor to this course.
